PW100 Max Product Introduction

Dongguan Haiguang Smart Device CO.,ltd launches the new PW100 MAX – a portable 4G WiFi + 10000mAh fast-charging power bank in one device. Tired of your phone running out of battery or your laptop not connecting to the internet? The PW100 MAX solves these two major travel pain points in one go.

Appearance Design: Compact and exquisite, available in two colors

The PW100 MAX measures 101×66×32mm and weighs only 220g, roughly the size of a mainstream smartphone, easily fitting into a pocket or backpack for effortlessportability.

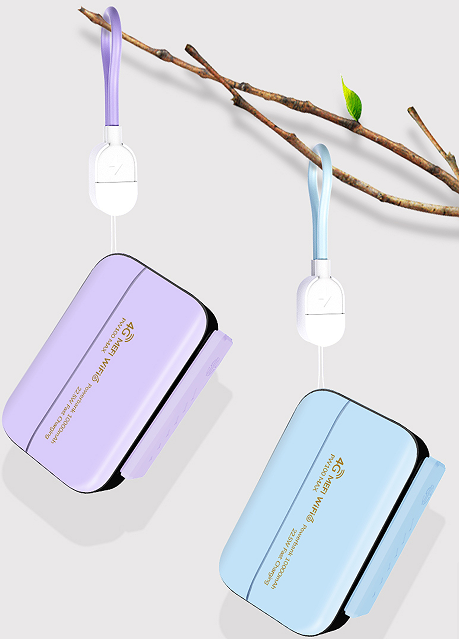

It comes in two colors: Amour Purple and Romantic Blue, offering a blend of business and fashion appeal. A lanyard hole is located on the top of the device, allowing for handheld or hanging use with a lanyard for added convenience.

产品双色展示与接口说明

Key Highlights: Power bank and WiFi combined, high-gain external antenna

???? 10000mAh large capacity + 22.5W super fast charging

As a power bank, the PW100 MAX has a built-in 10000mAh lithium polymer battery, which can recharge mobile phones, earphones, smartwatches and other devices multiple times. It supports 22.5W fast charging output and 18W fast charging input, and the Type-C interface serves as both input and output, making it convenient to use with a single cable.

???? 4G MiFi + WiFi 6 high-speed hotspot

After inserting a SIM card, the PW100 MAX instantly transforms into a portable 4G router. It supports the LTE Cat.4 standard, with a maximum download speed of 150Mbps and a maximum upload speed of 50Mbps. The WiFi uses the IEEE 802.11 ax (WiFi 6) 2.4GHz band, ensuring more stable multi-device connections, lower latency, and smooth, lag-free access.

20%-30% Speed Improvement: After unfolding the high-gain external folding antenna, signal reception is significantly enhanced, with network speed improved by 20%-30% compared to the internal antenna, and performance is even better in weak signal environments.

折叠天线展开前后网速对比示意

???? Type-C DATA Direct Internet Connection

In addition to the WiFi hotspot mode, the PW100 MAX is equipped with a dedicated Type-C DATA port. Simply connect it to your laptop with a Type-C data cable to enjoy a wired-level stable internet experience. No network cable or drivers are required; it's plug-and-play, making business work more efficient.

Type-C DATA 直连电脑上网示意

???? Multiple devices connected simultaneously

It supports simultaneous access from multiple devices such as smartphones, laptops, tablets, and smartwatches, meeting the network needs of various scenarios such as work, travel, and family gatherings.

Stable connection for multiple devices simultaneously

III. Network Configuration: Global Frequency Band Coverage

The PW100 MAX fully supports both FDD-LTE and TDD-LTE dual standards, with wide frequency band coverage:

• FDD-LTE: B1, B3, B5, B7, B8, B20, B28A/B

• TDD-LTE: B38, B40, B41 It can be used normally in most countries and regions worldwide, making it an ideal companion for business travel and cross-border work.

Intelligent Management: Web backend + multi-language support

After connecting to the WiFi of PW100 MAX, enter 192.168.0.1 in the browser to enter the WEB management background, which is fully functional and easy to operate.

Functional modules	Function Description
Quick Setup Wizard	One-click network initialization configuration, even beginners can get started quickly.
Equipment status monitoring	Real-time monitoring of signal strength, number of connected devices, data usage statistics, and battery level.
Network parameter settings	Adjustment of professional parameters such as APN, dialing mode, and network standard (automatic switching between 4G and 3G)
WiFi security settings	SSID name, WiFi password, encryption method (WPA2/WPA3), channel selection modification
Access Device Management	View the list of connected devices; supports blacklisting for speed limiting and one-click blocking of unfamiliar devices.
SMS sending and receiving management	Send and receive SIM card text messages online, supporting group texting and draft saving.
Contact Management	Local storage for frequently used contacts, supporting import/export and group management.
Traffic statistics alerts	Daily/monthly traffic usage statistics, traffic threshold can be set to automatically alert and disconnect the network
System firmware upgrade	Supports both FOTA online upgrades and PC local upgrades, with continuous optimization of the user experience.
Multilingual interface	Built-in Chinese, English, Russian, French, Spanish, Vietnamese and other languages

Web Management Backend Login Interface

V. Overview of Applicable Scenarios

Use cases	PW100 MAX Core Value
???? Business travel commuting	Stay connected on high-speed trains and subways: power banks charge your phone, 4G hotspot powers your laptop for work, and keep your phone and network online simultaneously.
???? Overseas travel	Insert a local SIM card to enjoy local network access and avoid hefty international roaming fees; a high-capacity power bank provides all-day power for your devices.
???? Temporary office	Type-C data allows for direct connection to computers, providing wired-level network stability; easily set up office environments in cafes, hotels, and exhibition venues.
Outdoor recreation	Provides a stable WiFi hotspot for multiple mobile phones, tablets, and Switches simultaneously during camping, picnics, and road trips.
Home backup	A backup internet connection for home broadband outages or temporary rentals during renovations; plug and play, no wiring required.
Small and micro businesses	In scenarios such as street stalls, night markets, and pop-up stores, it provides network connectivity for cash registers and POS machines, while also catering to mobile phone charging needs.
Campus Dormitories	When the campus network restricts multiple devices from accessing the network, a single SIM card can be converted to WiFi to share the network, supporting simultaneous use by the entire dormitory.
Live streaming e-commerce	It provides stable network support for outdoor and mobile live streaming scenarios, and its large battery supports long-lasting, uninterrupted battery life.
