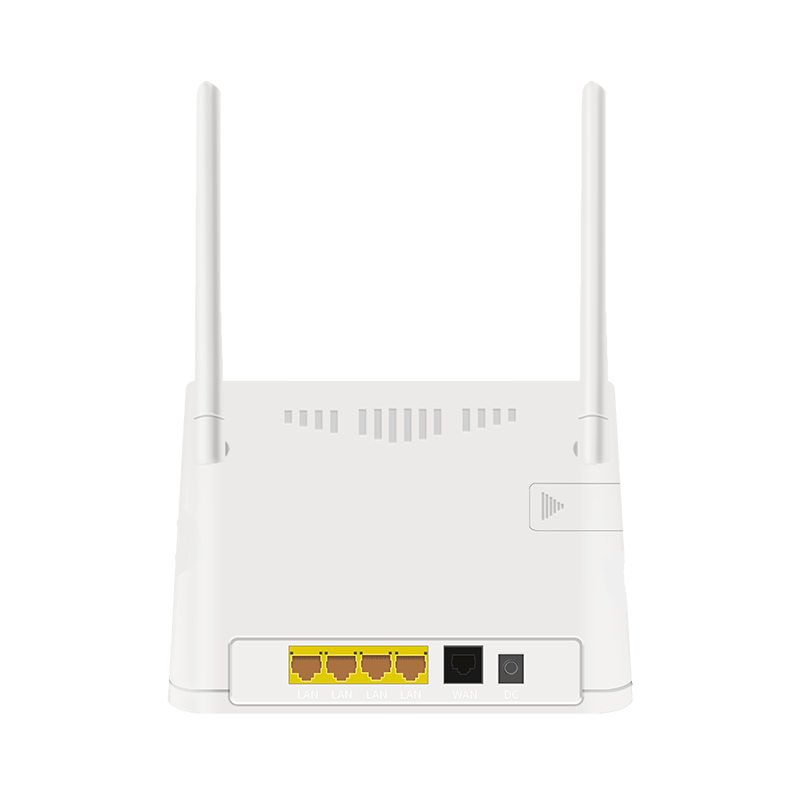

R310 4G LTE ROUTER

Name: R310 4G LTE ROUTER
Rating: 5 (84 reviews)

产品详情

Hardware Feature
CPU	MT7628N
Modem	ZX297520V3
Memery	Flash/RAM: 1G Nand Flash
Power supply	Power Jack,DC 12V/1A
RJ45 Port	5x RJ-45 port(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u) for WAN/LAN Auto
RESET key	Using for restore factory default settings.(long press 8 seconds）
LED indicator	1 Power indicator
	2 System indicator
	3 Modem indicator: 3G with blue,4G with green.
	4 WIFI indicator
	5 WAN/LAN indicator
SIM card	Support Micro sim card
Antenna	External,1 x 5dbi Wifi Antenna;1x 5dbi 4g antenna
Wireless
Work Frequency		FCC: 2412-2462MHz(Ch1-Ch11)
		ETSI: 2412-2472MHz(Ch1-Ch13)
Transfer rate		11n：270/243/216/162/108/81/54/27Mbps
		135/121.5/108/81/54/40.5/27/13.5Mbps
		130/117/104/78/52/39/26/13Mbps
		65/58.5/52/39/26/19.5/13/6.5Mbps
		11g：54/48/36/24/18/12/9/6M（self-adaption）
		11b：11/5.5/2/1M（self-adaption）
Work channel		13x, Auto-selection or manually
Spread-spectrum		DSSS
Data modulation		BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Rx Sensitivity@PER		270M：-61dBm@10% PER；130M： -61dBm@10% PER；108M：-61dBm@10% PER；54M：-65dBm@10% PER；11M：-85dBm@8% PER；6M：-88dBm@10% PER;1M：-90dBm@8% PER
Transfer distance		Indoor 30 meters as far as ;
		outdoor as far as 50 meters (owing to the different environment)
Tx Power		11n: 15±1.0dBm; 11g: 16±1.0dBm; 11b:19±1.0dBm（typical）
Frequency		FDD:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28 （bands can be customized)
		TDD B38/B39/B40
		WCDMA : BAND1/8 （Band customizable）
4G Transfer rate		TDD-LTE: 150Mbps DL / 50Mbps UL
		TD-SCDMA: 2.8Mbps DL / 2.2Mbps UL
Software Feature
IP address		Static or DHCP
MAX. end users number		32
Router protocol		Static router，RIP1/RIP2
Management UI		Based WebUI(HTTP)
DHCP		Support Server and Client
Firewall		Built-in NAT Firewall
Network Protocol		TCP/IP, PPPoE、DHCP、ICMP、NAT、NAPT、ARP、PPP、PAP、CHAP、PPTP
ENVIRONMENT & PHYSICAL
Temperature range		-10 to 50 ℃ operation; -20 to 70 ℃ storage
Humidity(non-condering)		15% - 95% typical
Size		200mmX145mmX48mm
